Ready to Ship Nylon 66 Plastic Resin Compound GF25 Fr V0 PA66 Granules

ready to ship Nylon 66 plastic resin compounds GF25 fr V0 PA66 granulesGlass fiber reinforced nylon PA66 is made of PA66 resin and filled with 10-40% glass fiber.It is high strength, high toughness, wear resistance and corrosion resistance. Also, the material is dimensionally stable with high heat deflection temperature, good el

Featured Products

ready to ship Nylon 66 plastic resin compounds GF25 fr V0 PA66 granules
Ready to Ship Nylon 66 Plastic Resin Compounds GF25 Fr V0 PA66 Granules
Glass fiber reinforced nylon PA66 is made of PA66 resin and filled with 10-40% glass fiber.

It is high strength, high toughness, wear resistance and corrosion resistance. Also, the material is dimensionally stable with high heat deflection temperature, good electrical insulation, good surface smoothness, easy molding and other advantages.

Material is approved by RoHS compliant, and can be widely used in automotive parts, electronic appliances, power tools, gears, mechanical parts and other fields.
PA66 (F01 )
 Product Description Applications
·PA66· Injection molding
·  Excellent heat stability· Good mechanical properties balance
 PropertiesTest MethodTest Condition UnitTypical Values
Physical properties
RELATIVE VISCOSITYIS0307 IN 96%H2SO4  2.7
Specific Gravity ISO 118323ºC g/cm31.14
Mechanical properties
Tensile Strength ISO 527 50mm/min MPa 78
Elongation at BreakISO 527 50mm/min %50
Tensile Modulus ISO 527 1mm/min MPa 3200
Flexural Modulus ISO 1782mm/min MPa 2780
Charpy Notched Impact Strength     ISO 179-1eA23ºCkJ/m2 6
Thermal properties
Heat deflection temperatureISO 751.80MPaC72
Melting PointDSC-C222
Other properties
Flammability UL94-3.2mmV2
Note: The data above is typical value for reference, not guarantee value. The data will vary with tool design such as gate type , gate location, gate number, injection molding process and part thickness. The data will vary with different color as well. Prior to use the material, please consult with TOPO NEW MATERIAL CO.,LTD.
 Processing Conditions Range
Melt Temperature260-280ºC
Mold Temperature80-100ºC
Pre-Dry needed100ºC, 4-8h
Note: The above process condition is only for reference. The actual process should be adjusted according to different type of machine,  mold design and product design.
Ready to Ship Nylon 66 Plastic Resin Compounds GF25 Fr V0 PA66 Granules
Ready to Ship Nylon 66 Plastic Resin Compounds GF25 Fr V0 PA66 GranulesReady to Ship Nylon 66 Plastic Resin Compounds GF25 Fr V0 PA66 GranulesReady to Ship Nylon 66 Plastic Resin Compounds GF25 Fr V0 PA66 GranulesReady to Ship Nylon 66 Plastic Resin Compounds GF25 Fr V0 PA66 GranulesReady to Ship Nylon 66 Plastic Resin Compounds GF25 Fr V0 PA66 GranulesReady to Ship Nylon 66 Plastic Resin Compounds GF25 Fr V0 PA66 GranulesReady to Ship Nylon 66 Plastic Resin Compounds GF25 Fr V0 PA66 GranulesReady to Ship Nylon 66 Plastic Resin Compounds GF25 Fr V0 PA66 GranulesReady to Ship Nylon 66 Plastic Resin Compounds GF25 Fr V0 PA66 Granules

Are you trading company or manufacturer?

We are manufacturer.



About Sample?

5 KG Free Sample can be offered per your request.



About Material Color?

We can make the material to your appointed color according to Pantone/RAL#.

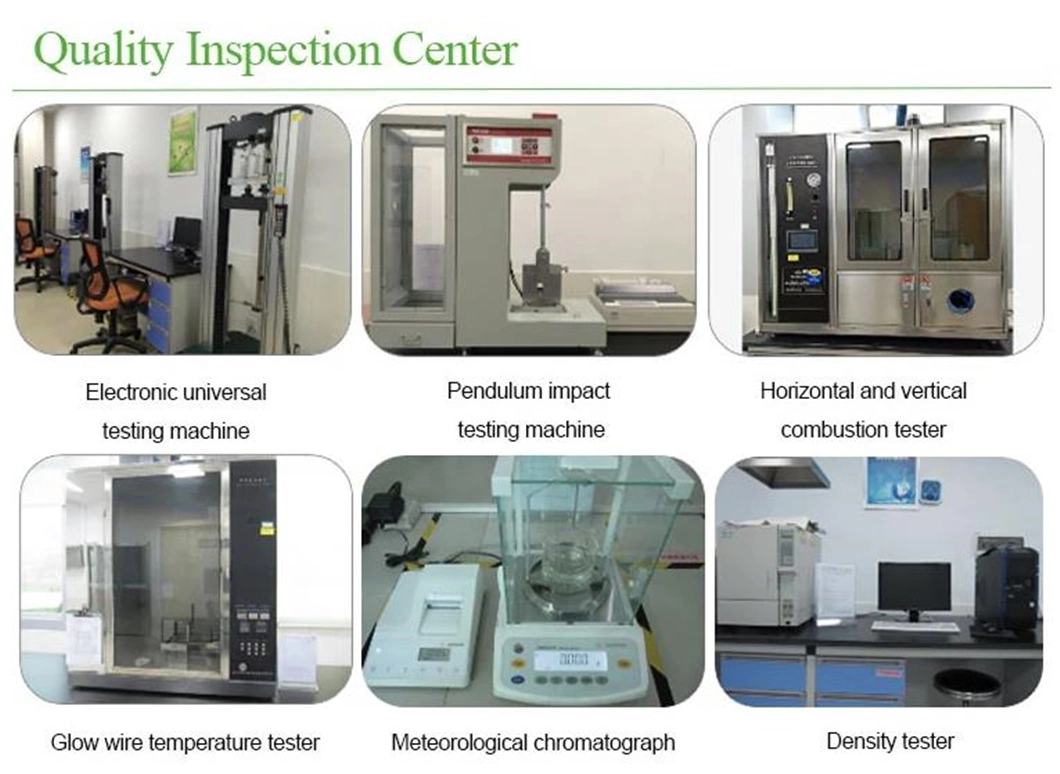

How does your factory control the quality?
Quality is the Priority, we always pay great important to quality from beginning to  end, we have  professional QC  for item quality from spare parts to finished goods.



 How many days for mass production?

20 days after all artwork and 30% deposit are confirmed.


 How can I get the samples? is the sample free?

7-10 days to send free samples by DHL, TNT, UPS
